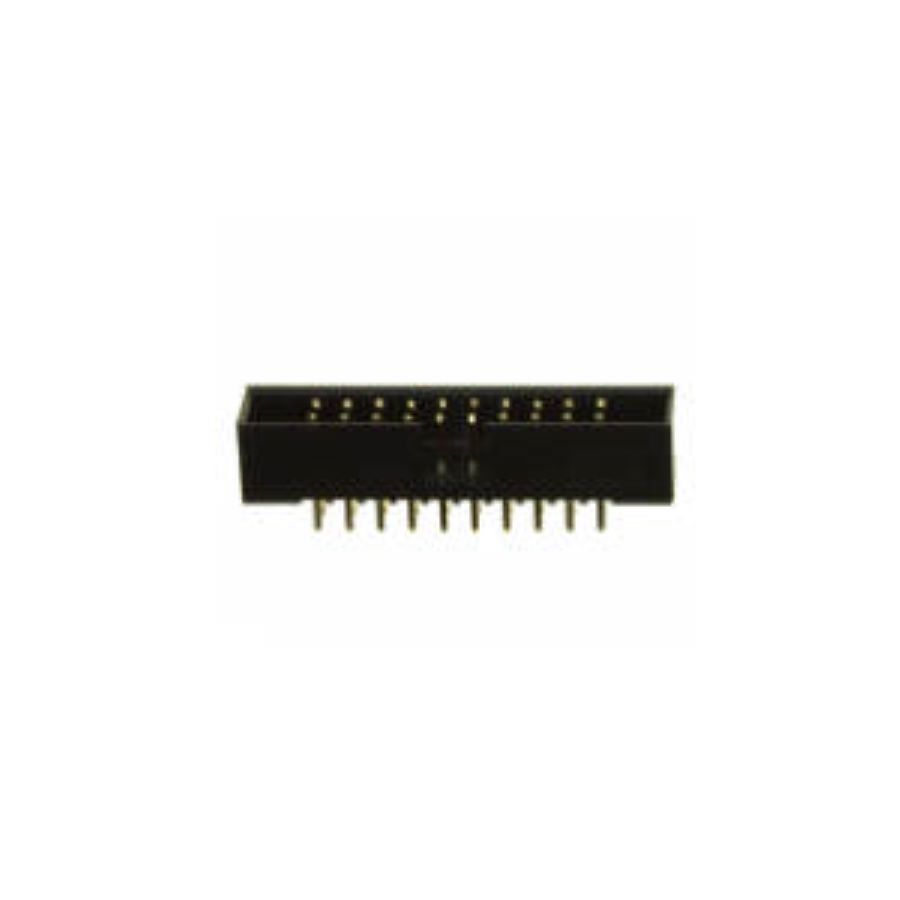

SBH21-NBPN-D10-ST-BK
制造商:
Sullins Connector Solutions
制造商物料号#:
SBH21-NBPN-D10-ST-BK
规格书:
描述:
连接器 Pin Pitch2.00mm Through Hole 行数:2 Black 触点电镀:Gold 间距:2 mm 针/孔位数:20
| 参数项 | 值 |
|---|---|
| 端接 | Solder |
| 最高工作温度 | 105 °C |
| 最低工作温度 | -40 °C |
| 包装方式 | Tray |
| 无铅 | Lead Free |
| RoHS | Compliant |
| 触点电镀 | Gold |
| 触点材料 | Gold |
| 间距 | 2 mm |
| 额定电流 | 2 A |
| 颜色 | Black |
| 连接器类型 | Male Pin |
| 针/孔位数 | 20 |
| 行数 | 2 |
| 行间距 | 2.0066 mm |
| 绝缘材料 | Polyamide (PA), Nylon |
| 紧固类型 | Push-Pull |
| 触点形状 | Square |
| 触点末端厚度 - 接合 | Flash |
库存: 357
销售商
pcbx
pcbx单价¥4.04375
总价¥4.04375
| 数量 | 单价 | 总价 |
|---|---|---|
| 1 | ¥4.04375 | ¥4.04375 |
| 10 | ¥3.42074 | ¥34.20740 |
| 25 | ¥3.23952 | ¥80.98800 |
| 50 | ¥3.06788 | ¥153.39400 |
| 100 | ¥2.90536 | ¥290.53600 |
| 300 | ¥2.74482 | ¥823.44600 |
| 500 | ¥2.59318 | ¥1296.59000 |
| 1000 | ¥2.46942 | ¥2469.42000 |
| 3000 | ¥2.33437 | ¥7003.11000 |
| 5000 | ¥2.20673 | ¥11033.65000 |
